LX Studio

Name: LX Studio
Brand: La Boite concept
Price: 6490.00 EUR
Availability: InStock

6 490,00 €

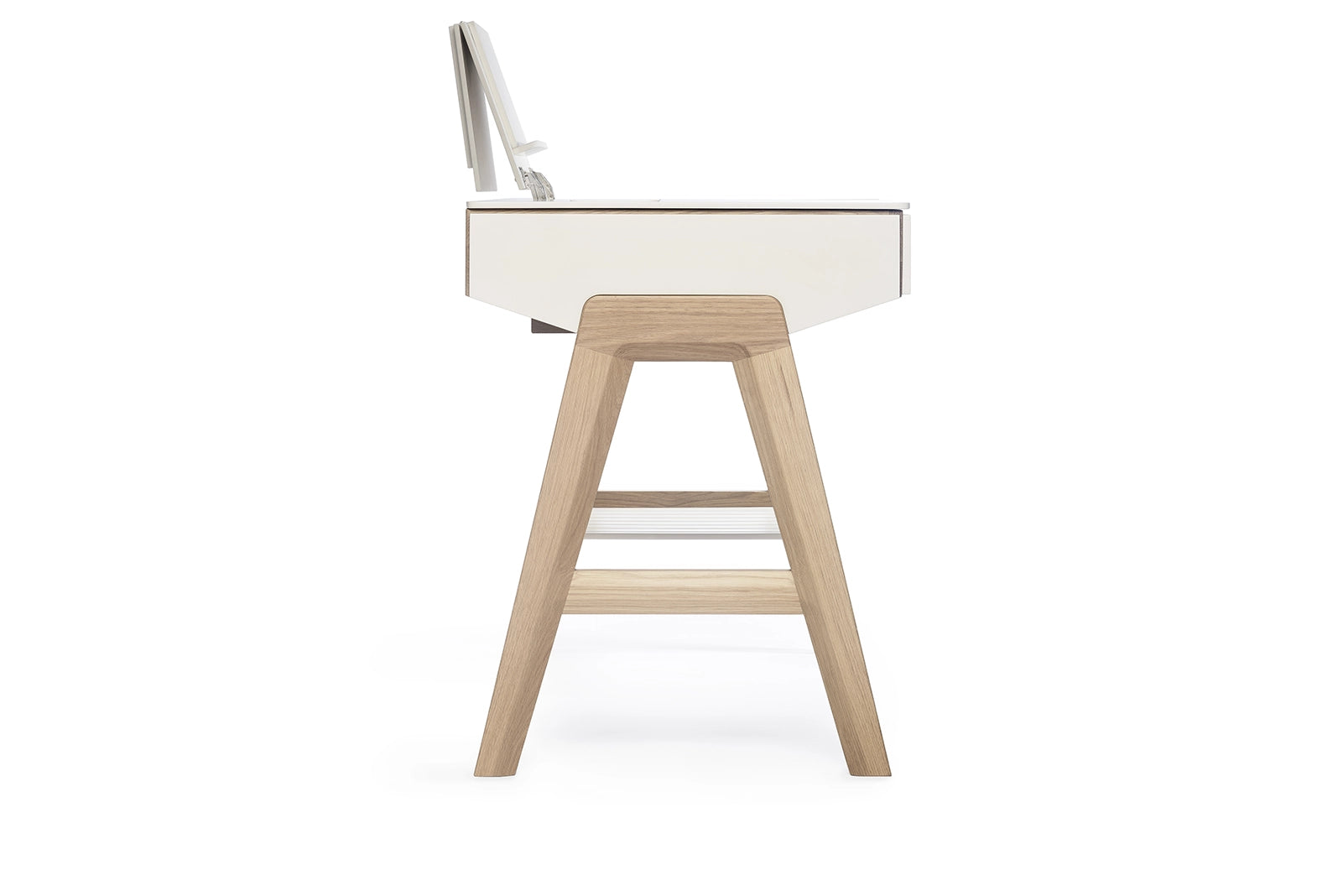

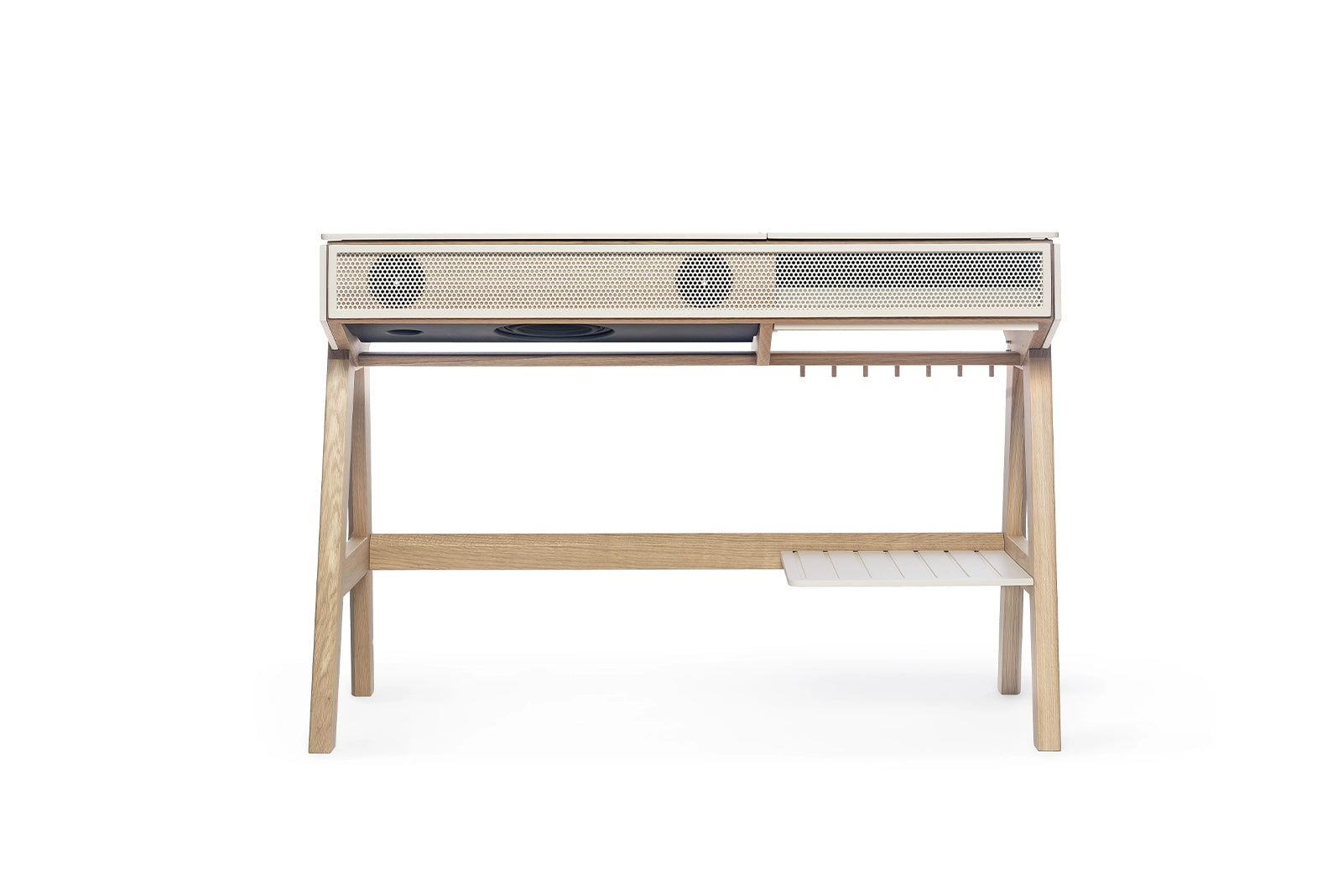

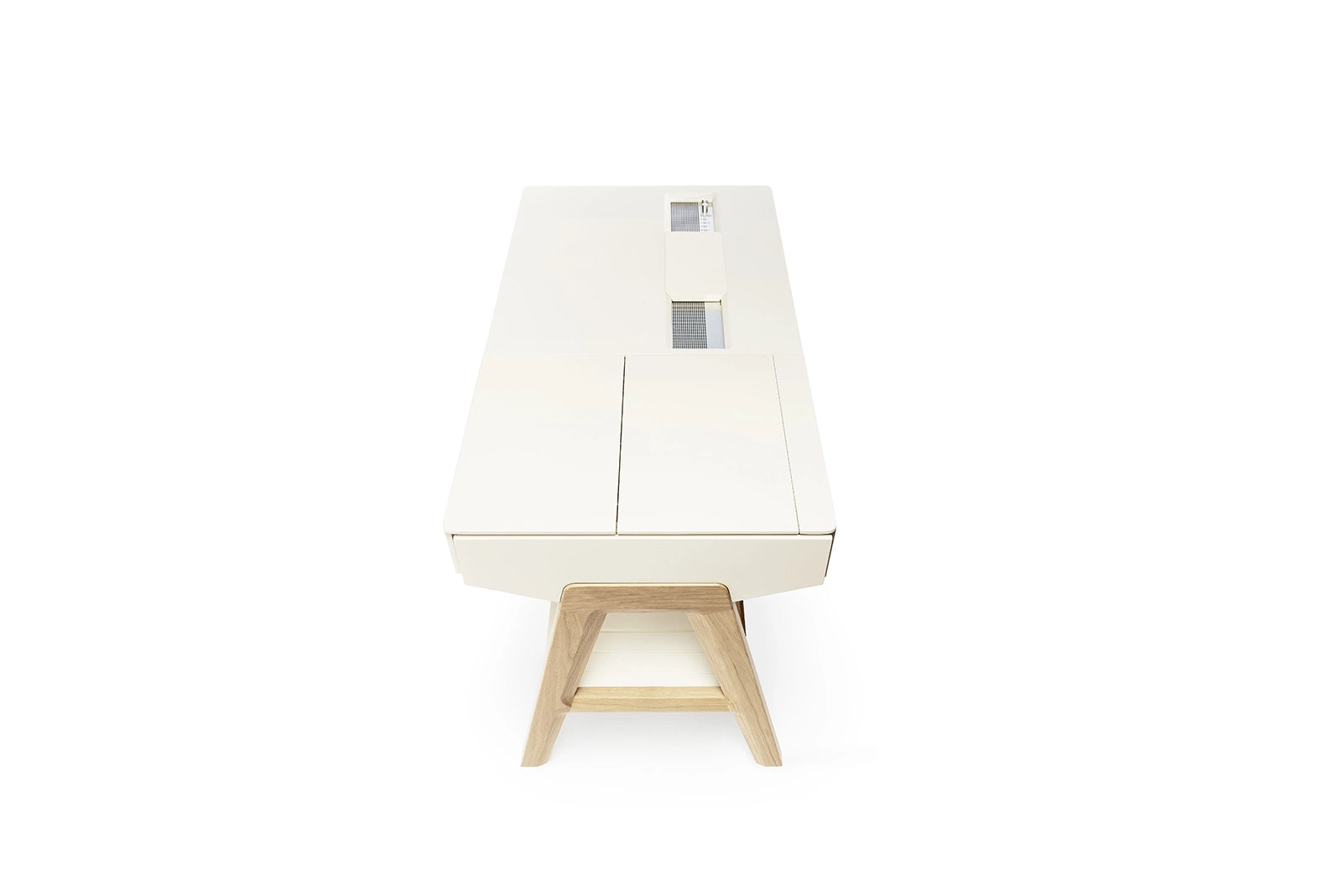

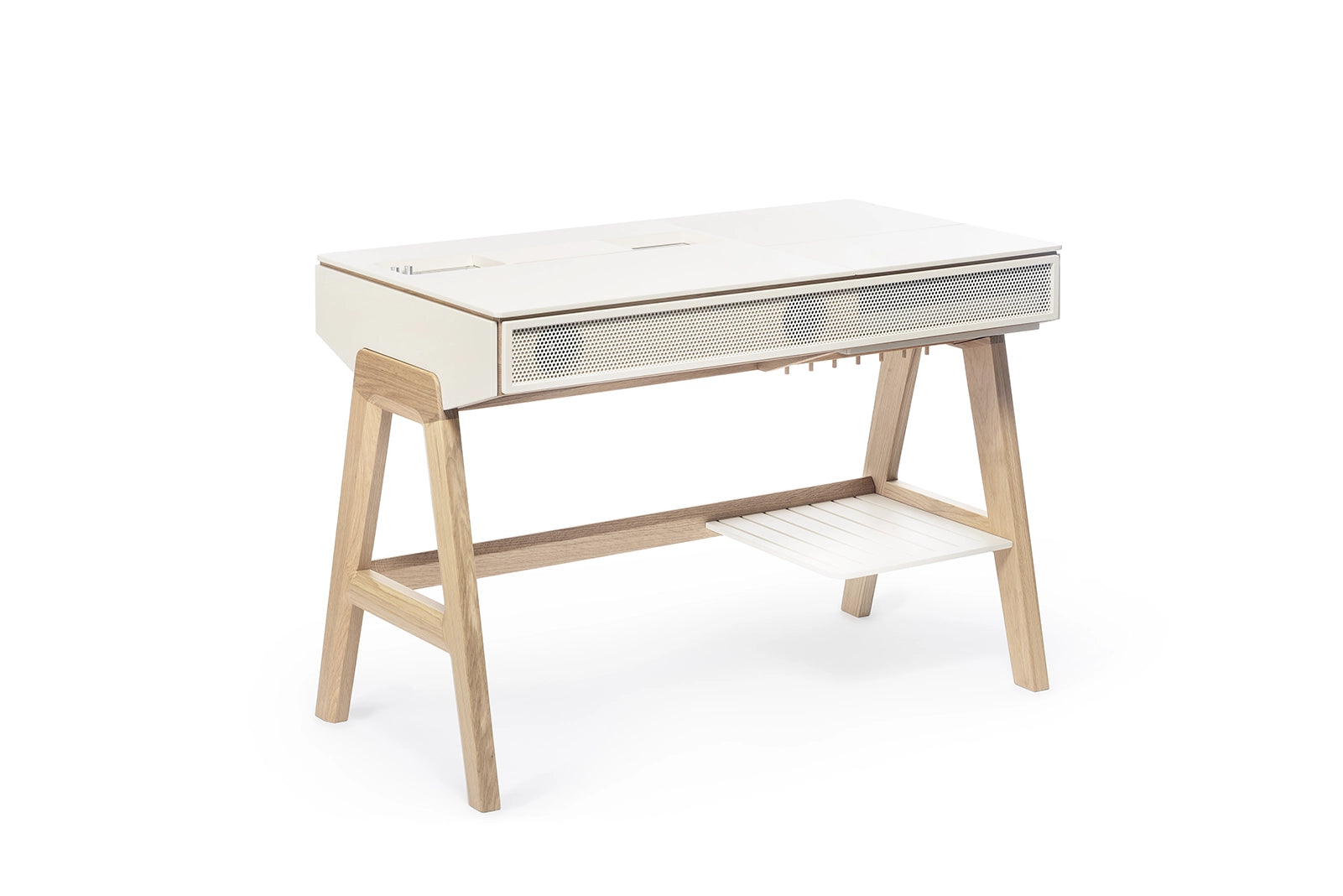

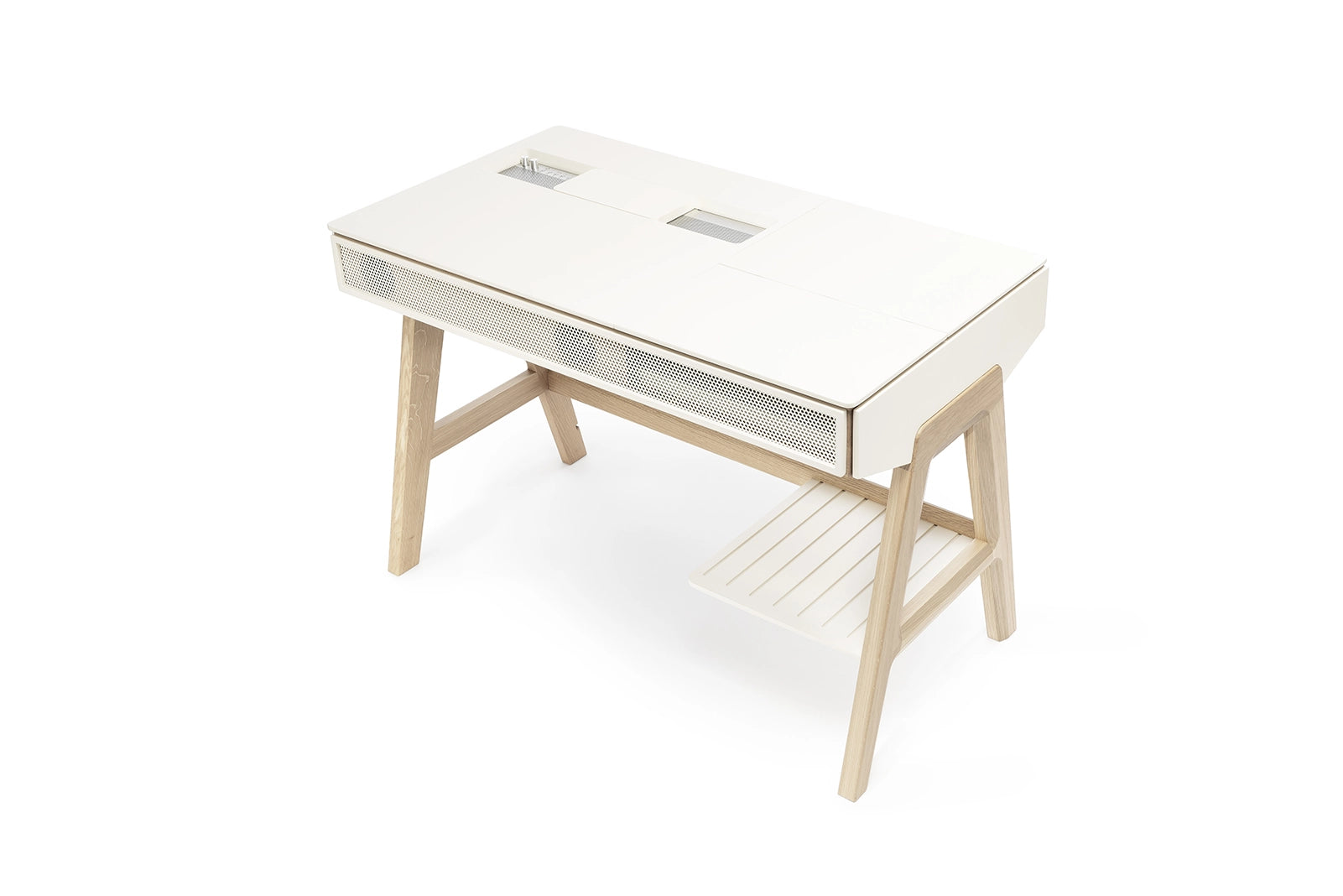

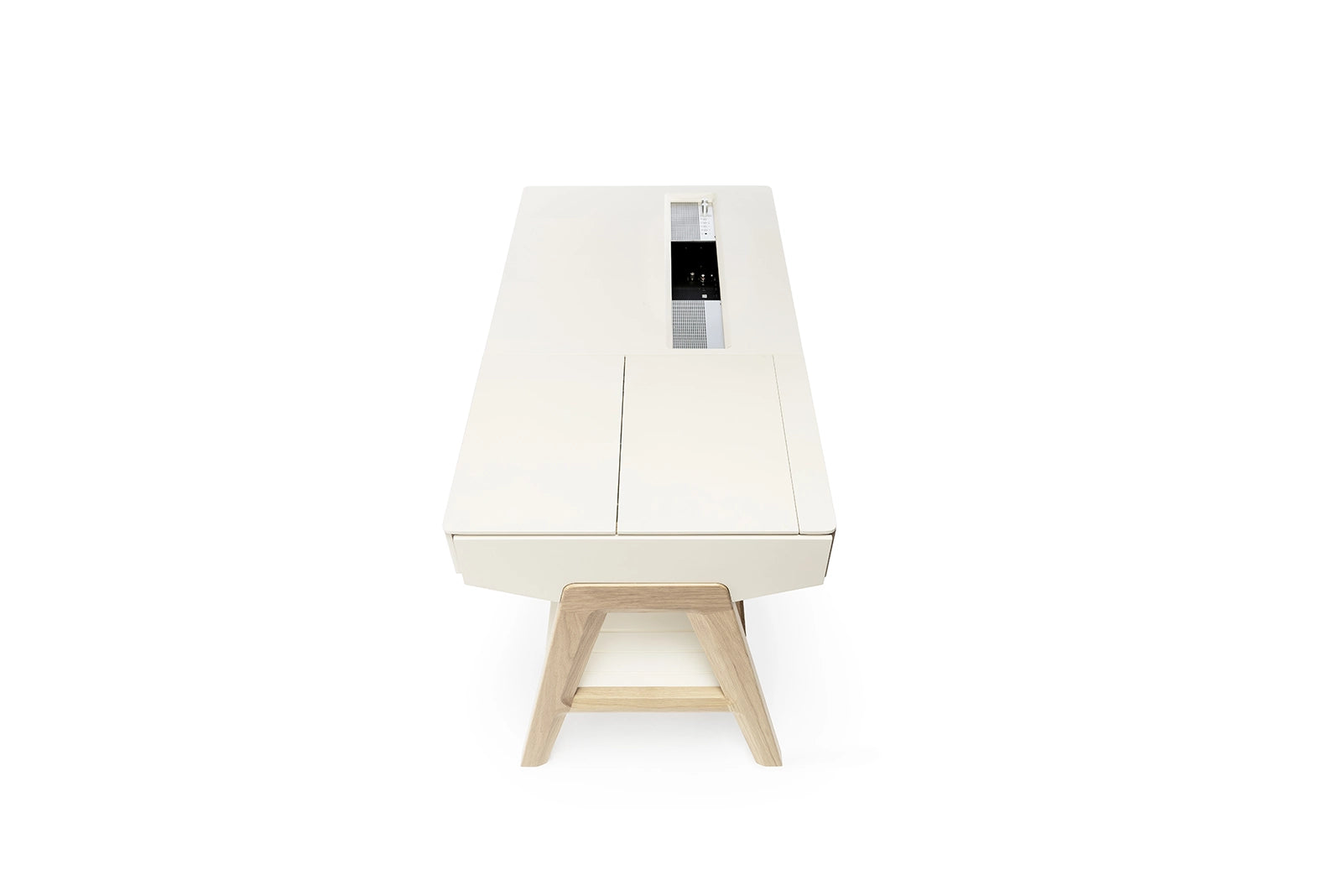

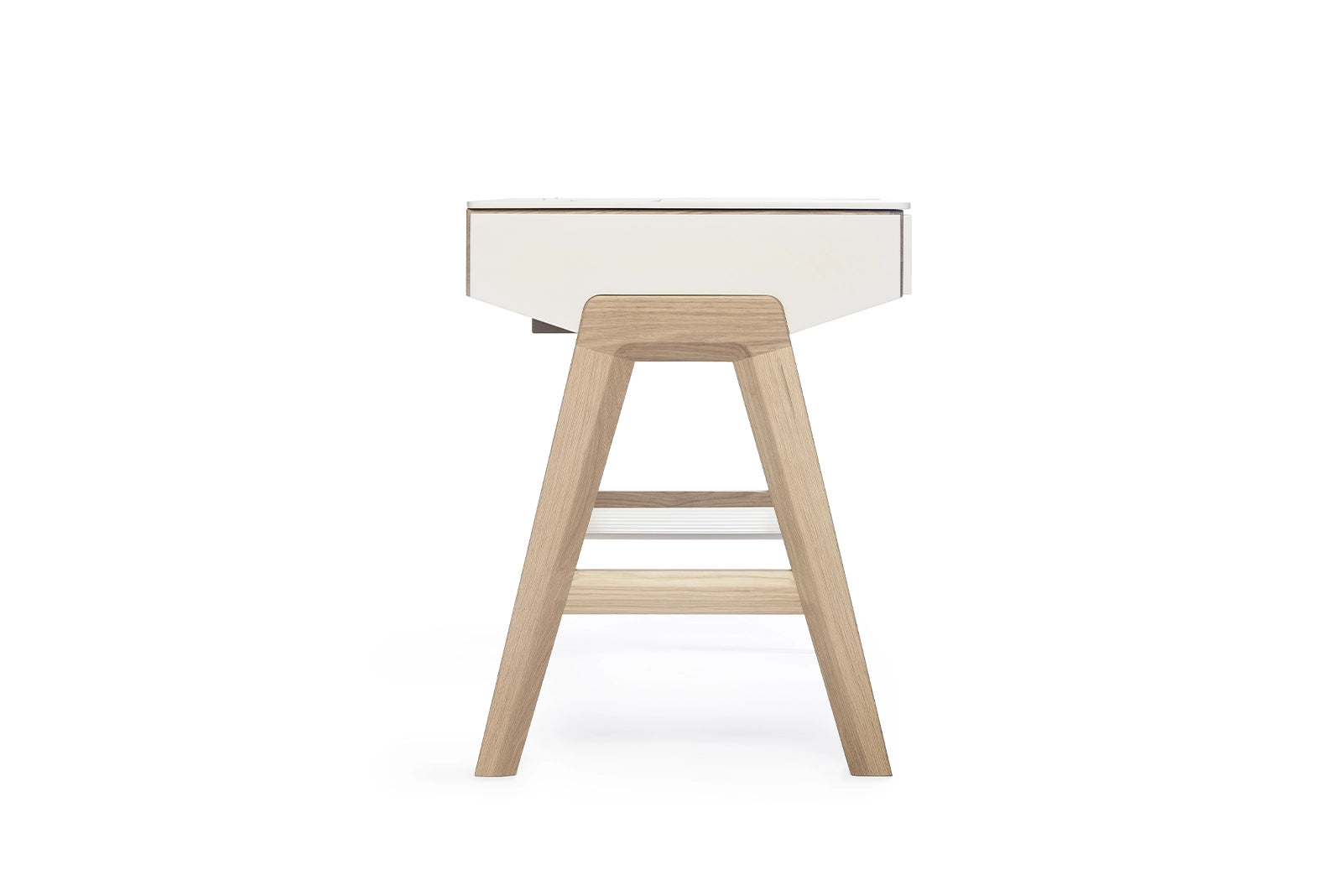

A complete acoustic object in desktop format.
Studio quality in home format (without La Boite concept turntable).

Product available within 3 weeks minimum after order validation.

More info

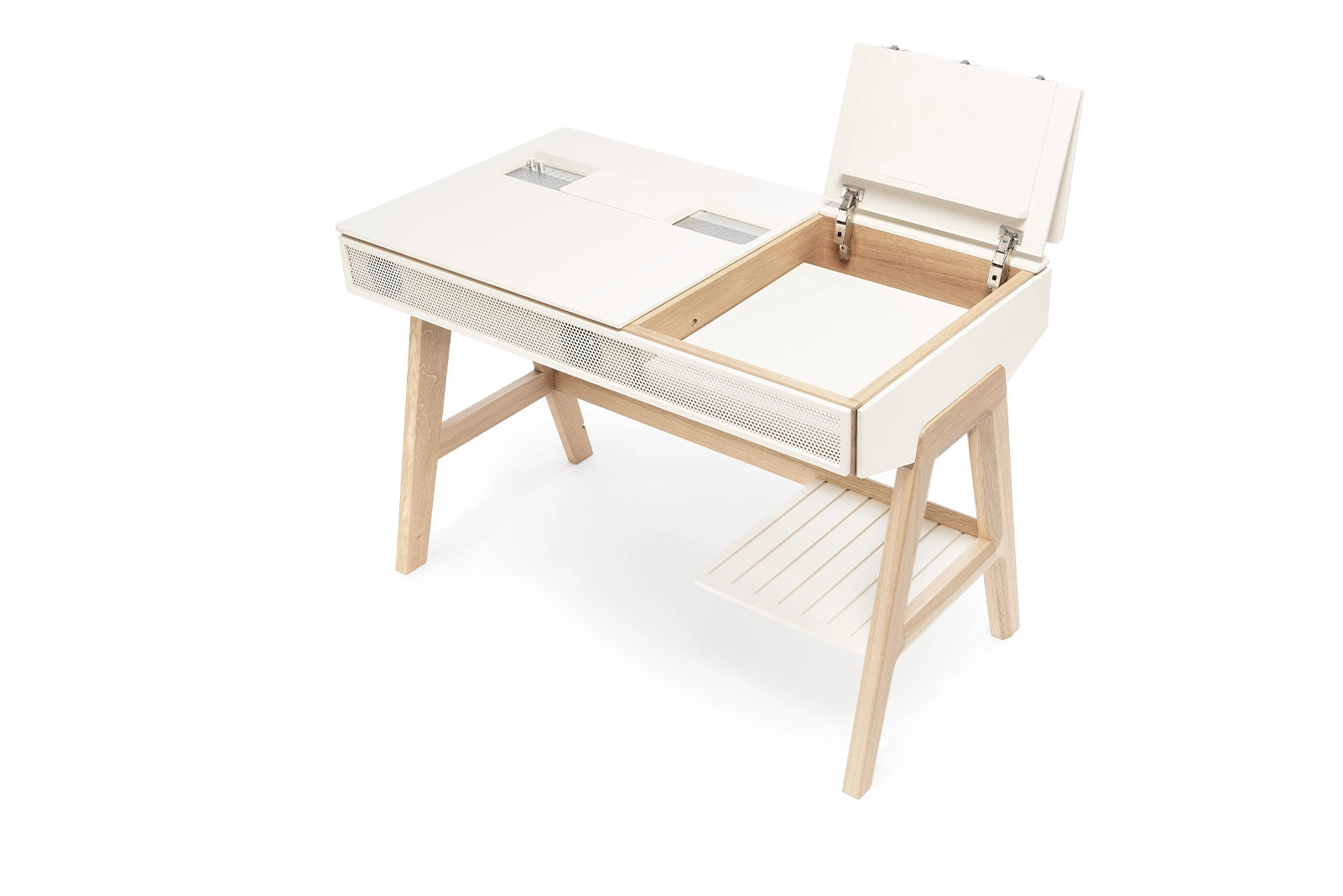

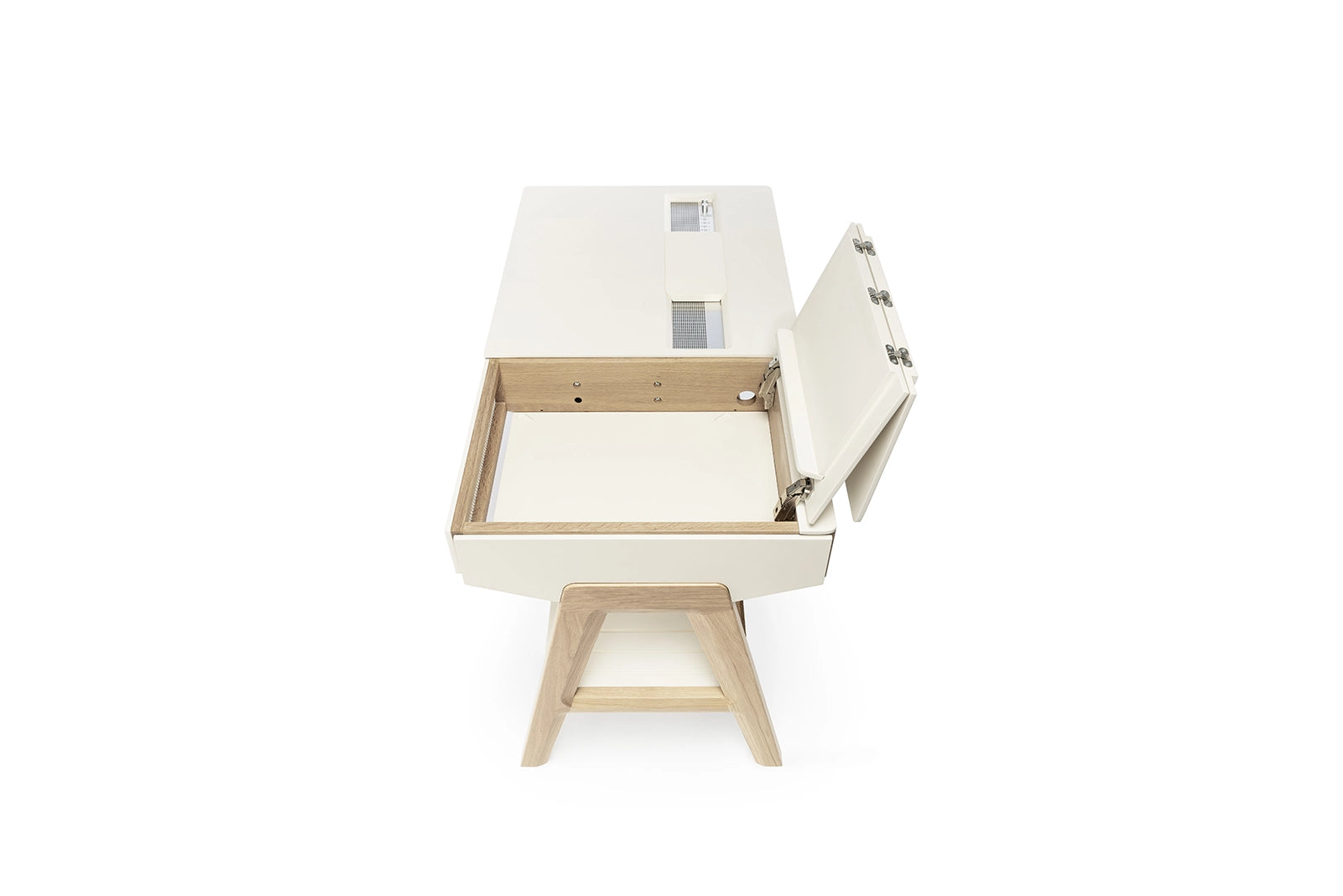

This desktop-format loudspeaker can be used with any type of equipment. Combine it with your tablet, your computer, your turntable or La Boite concept turntable, your CD player or even an additional wifi wireless system to be integrated into the hatch (Sonos®, Airplay®, Airport express®, Google® chromecast audio® ...).

Extended stereophony: Integrated into the LX Studio, Wide Sound® 3.0 technology provides extended stereophony in a single-piece loudspeaker with wide, homogeneous stereophonic reproduction, especially in the treble. Thanks to its extremely wide bandwidth, the LX Studio reproduces all frequencies dynamically and linearly, offering in a compact volume natural listening conditions as close as possible to those obtained with a live orchestra, whatever the sound level or register.

Color(s): Without turntable

In stock

Quantity:

Payment in 3-4 instalments

Payment in 2-3 or 4 instalments at no extra charge from €300 with Alma.

Free delivery

We deliver free of charge for orders over €300, excluding "reconditioned" products, within two to three working days (within France), and within five days (within the euro zone).

Customer service by phone

If you have any questions, please contact us Monday to Friday, 9 am to 5.30 pm on +33 (0)5 64 11 53 57.

LX Studio

6 490,00 €

Connectors

Bluetooth ® APT-X

DAC USB 24Bits

RCA

Phono

3.5mm mini-jack

Optical Toslink (24Bits)

Voice control system compatible

Compatible with multi-room systems

USB charging port

220V charging point

Power

RMS amplification power at 8 Omhs: 180 W
Total power: 315 W
Perceived sound level in dB at 1M: 104 dB
Maximum recommended sound area: 200 m2

5 exclusive CCLAB La Boite concept loudspeakers. The five channels total 315 watts of power (4.1 system). 5 stages of Class D amplification with hifi power under 8 ohms at 0.1% THD of 180 W real: 1x 90 W + 2 x 25 W + 2 x 20 W RMS realSound level: 104 dB at 1 meter for a room of up to 200 m2.

Speakers

1 x ultra-long-excursion cellulose membrane woofer
2 x TWZ WS 3.0® tweeters with cones and ogives equipped with internal convex baffles
2 x fiberglass midrange tweeters with aluminum dispersion head

Connectors

Bluetooth® Apt-X, DAC usb 24bits, RCA, mini-jack 3.5mm, Optical toslink (24bits), compatible with voice control systems, multi-room systems, slot for induction charger, USB charging ports, 220V charging point.

Suitable for traditional turntables weighing less than 7 kg (integrated phono pre-amp).

Dimensions & weights

Length 114cm x Width 58.5cm x Height 78.5cm
60 KG

Behind the scene

Limited Edition and Made in France

La Boite concept presents the LX Studio, a limited edition of just 100 pieces, each adorned with a numbered plate. As an exporter with the "Made in Europe" label, we honor French excellence and know-how in the manufacture of our products.

We have a dual geographical footprint:
- Soorts-Hossegor (Landes): Our team, in collaboration with local craftsmen, harnesses regional expertise in wood and craftsmanship. The Custom Creation Lab located here is the heart of our innovation, guaranteeing local, high-quality production.
- In Paris: Our marketing and communications team works to raise the profile of our brand. By participating in major events and strengthening our market presence, we remain true to our heritage while constantly innovating.

Each LX Studio is designed with a passion for craftsmanship and innovation. Our products are the fruit of close collaboration with craftsmen in the Landes and Basque regions, guaranteeing meticulous attention to detail and uncompromising quality.

In collaboration with...

Clément Hellégouarch

LX and LX Turntable designer.

To celebrate its 10th anniversary, La Boite concept called on designer and musician Clément Héllégouarch to help design its latest innovation: the LX series. Passionate about creation in all its facets, Clément Hellégouarch offers a world oriented towards practical, technical and aesthetic optimization. Also a musician, he spent five years working with La Boite concept and Timothée Cagniard, developing their shared vision of loudspeakers with rigor, passion and friendship.

How do I change my belt?

Changing your belt is a quick procedure that may require several tries:

- First, remove the previous belt.
- Place your new belt on top of your turntable, making sure that the axis of the turntable is inside the circle of the belt.
- Using your left index finger, pass the belt through the notch in the pulley, then hold the position until the belt is in place.
- With your right hand, place the belt on the edge of the turntable, then, while holding it, turn the turntable until it makes a complete turn.

Your belt is now in place.

How do I change my stylus?

The LX turntable arm is fitted with an Ortofon OM10 stylus. The pickup consists of two parts: the cartridge, screwed onto the arm, and the stylus, mounted on the cartridge. To replace it, pull gently on the stylus to detach it from the cartridge, then insert the new stylus in its place.

How do I connect the turntable to the speaker?

To connect the LX turntable to the speaker, you'll find an RCA cable and a power supply in the product packaging. Start by connecting these two cables to the LX ports. Then, with the help of another person to carry the turntable, connect the other ends to the dedicated ports on the underside of the turntable. Finally, pre-amplify your turntable by pushing the knob above the RCA ports to the right, in "PHONO" mode. It's important to also connect the metal fork on both sides to ground the turntable. This will prevent background noise when listening.

What is the Bluetooth range on this speaker?

The maximum range of a Bluetooth speaker is 10 meters. If this distance is exceeded, the sound jerks and eventually cuts out.

This distance may vary depending on the environment in which you use these devices. For example, there may be sources of wireless interference (such as microwave ovens) or physical obstacles (such as walls or human bodies) that affect the effective range of your Bluetooth. If such factors affect Bluetooth functionality, bring the two devices closer together and try again.

Here is a list of potential interference materials:
- wood, glass and many synthetic materials: low interference
- water, bricks, marble: medium interference
- plaster, concrete, shielded glass: high interference
- metal: very high interference

How many shock absorbers (springs) should I get with my LX?

For the LX Turntable, 4 springs are required. For the "standard" LX model (without integrated turntable) we supply 5 shock absorbers, the 5th is only required for heavier turntables.

What is an active loudspeaker?

An active loudspeaker is a type of speaker that integrates an amplifier directly inside, simplifying installation and operation. Unlike passive speakers, which require an external amplifier, active speakers offer an all-in-one solution. Often described as "Plug & Play", they require only a simple connection to an audio source (such as a smartphone, computer or turntable) to operate. There's no need for additional cables or devices - everything is integrated, making for a fast, hassle-free listening experience.

Download the LX Studio user manual.

Notice FR/EN
